OEM ODM Approved EVSE Charging Station Mode 3 Car Charger 22kw 3 Phase
Lekol has the fast electric car EV charger charging station, we mostly do include type 1, type 2, one phase, three phase, level 2 voltage, 16A, 32A, 40A current, 3.5kw, 7kw, 10kw, 11kw, 22kw charging station of SAE J1172 and IEC 62196-2 standards for home use(residential) and commercial use which cover most market needs in most countries.
As a manufacturer of ev charging stations, to survive in this fierce market, our products are supposed to last long, to be safe, reliable, affordable and easy to use for everyone so we take quality, safety, stability, price, service and supports to our customers of great importance. Meanwhile, startups, small businesses and large corporate are all welcomed at Lekol. We’re able to produce large quantity in the same time with the flexibility to do customize designs, logos and colors, samples and trial orders etc to boost your business and brand growth. Whatever you requires, we have the people, the technology and determination to make it happen for you!

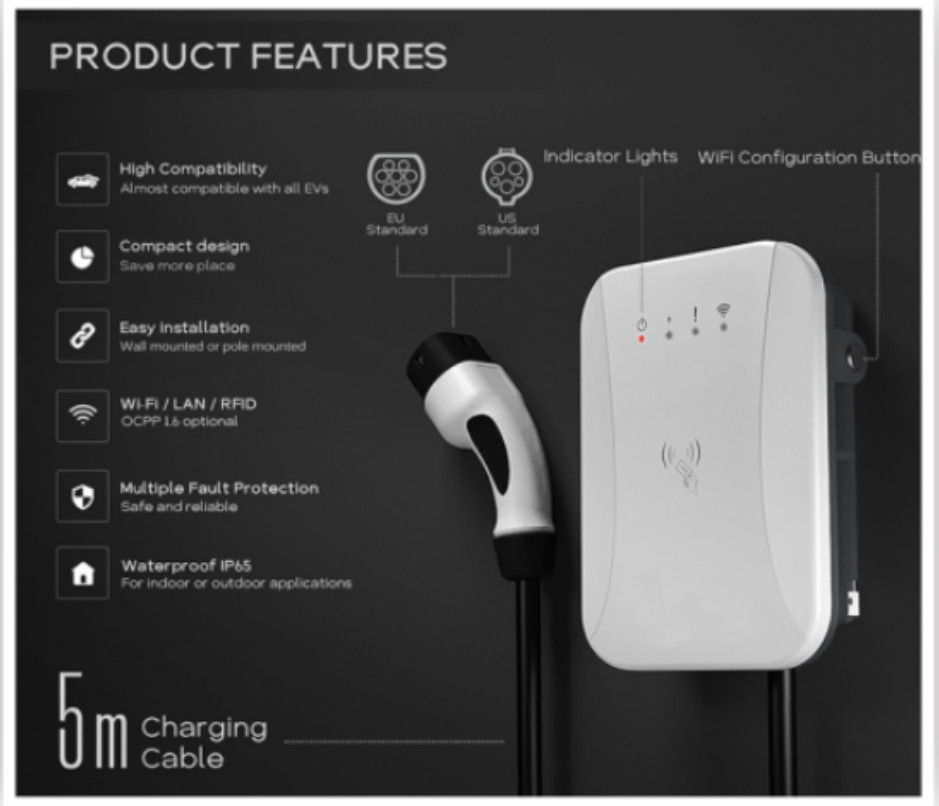

Feature
1. Factory with dedicated sales and R&D team
2. Customize designs
3. CE
✔ Wi-Fi / LAN/ RFID
✔ Easy Installation
✔ IP 65
✔ Compact Design
✔ High Compatibility
✔ Logo Customizable
Specification
| Charging Connector/ plug type | IEC62196-2 /Type 2 | SAEJ1772 /Type 1 |
| AC Power input rating | 1 phase 220V±15% | | |
| AC Power Output Rating | 3.5KW /16A | 11KW /16A | 3.5KW/16A |
| 7KW/32A | 22KW/32A | 7KW/32A |
| N/A | 43KW/63A | 10KW.40A |
| Rated Frequency | 50/60HZ |
| User interface & control |
| Charging control | Plug and charge √ | RFID card √ | CMS operate √ | |
| Display Screen | 4.3inch LCD screen |
| Wifi connection | Support √ | OCPP Protocol | 1.6J √ | 2.0.1 √ |
| Ethernet Interface | LAN(RJ-45) √ | APP interface | Support √ | |
| Environmental |
| Storage Temperature | -40 ~ 75℃ | Operating Temperature | -30 ~ 55℃ |
| Operating Humidity | Up tp 95%, non-condensing | Altitude | ≤2000m |
| Cooling Method | Natural Cooling | | |
| Protection |
| Over Voltage Protection | | Under Voltage Protection | |
| Over Load Protection | | Short Circuit Protection | |
| Earth Leakage Protection | | Ground Protection | |
| Over-temp Protection | | Surge Protection | |
| | | Protection ratings | |
| Wallbox Charger Mechanical |
| Dimension(H×W×D,mm) | 410×260×164 | Weight | 1 phase :9kg 3 phase:12kg |
| Charging Cable Length | 5m or 7.5m or customized | Enclosure Material | Front-panel: Tempered Glass, Back-cover: Plate Metal |
| LQM3T Mounting Pole(Optional) |
| Dimension(H×W×D,mm) | 1400×200×100 | Weight | ＜8kg |
| Enclosure Material | Metal | | |
CAUTION:
1. Don't submerge the ev charging box in water;
2. Don't step on, fold or knot the cable;
3. Don't drop the EV charging box or place a heavy object on it;
4. Don't place the charging cable near high temperature object when charging；
5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C；
6. Power-supply side input cable should be at least 3*6mm, with a standard 32A socket；
It is suggested that the power distribution is done by the professionals；
7. Don't put fingers into the charging connector when the power plug is still connecting to the
power;
8. Don't use this ev charging box when the cable is damaged;
9. The ev charging box is only for ev charging using;
10. Don't use this device with an extension cord or adaptor.
